An Introduction to Optical Coatings
Optical coatings are thin layers of dielectric, metallic, or composite materials deposited onto optical components (lenses, prisms, mirrors, windows) to manipulate light propagation—controlling transmission, reflection, polarization, and spectral selectivity via

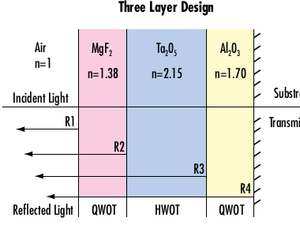

1. Fundamental Principle: Thin-Film Interference
Key design parameters: layer count, layer thickness (typically λ/4 or λ/2 of target wavelength), and refractive index contrast between layers.
Materials: Dielectrics (MgF₂, Ta₂O₅, HfO₂, SiO₂) for low absorption; metals (Al, Ag, Au) for broadband reflection; composites for hybrid functions.
2. Common Types of Optical Coatings
2.1 Anti-Reflection (AR) Coatings
Purpose: Minimize surface reflection (from ~4% to <0.1% per surface) and maximize transmission.
Applications: Eyeglasses, camera lenses, microscope objectives, display panels.
Design: Single-layer (MgF₂, λ/4) for narrowband; multi-layer (2–10 layers) for broadband (visible/near-IR) or wide-angle performance.
2.2 High-Reflective (HR) Coatings
Purpose: Maximize reflectivity (up to 99.99%+) for laser resonators, beam steering, and mirrors.
Metallic HR: Al (88–92% visible), Ag (95–99% visible–IR), Au (98–99% IR)—low cost, broadband, but absorb some light.
Dielectric HR: Alternating high/low-index layers (e.g., Ta₂O₅/SiO₂)—higher reflectivity, lower absorption, wavelength-specific.
2.3 Filter Coatings
Bandpass: Transmit a narrow wavelength range (e.g., 532 nm for green lasers); block others.
Longpass/Shortpass: Transmit wavelengths longer/shorter than a cutoff (e.g., IR-cut filters for cameras).
Notch: Block a narrow band (e.g., laser line rejection in spectroscopy).
Dichroic: Separate visible/IR or RGB light (projectors, LED lighting).
2.4 Specialized Coatings
Beamsplitters: Split light into reflected/transmitted paths (50/50, 70/30 ratios) for interferometers, laser systems.
Polarization Coatings: Selectively reflect/transmit s/p-polarized light (polarizers, isolators).
Protective Coatings: Shield optics from scratches, moisture, or harsh environments (e.g., SiO₂ over metal mirrors).
3. Manufacturing Methods
Physical Vapor Deposition (PVD):
E-Beam Evaporation: Electron beam melts/evaporates coating material; vapor condenses on substrates (high precision, common for dielectrics/metals).
Sputtering: High-energy ions bombard a target, ejecting atoms onto substrates (dense, durable films for high-power lasers).
Chemical Vapor Deposition (CVD): Reactive gases form films on substrates (used for thick, robust coatings).
4. Key Performance Specifications
Wavelength Range: Visible (400–700 nm), near-IR (700–2500 nm), UV, or broadband.
Angle of Incidence (AOI): 0° (normal) to 45° (common for imaging); performance shifts with AOI.
Polarization Sensitivity: s/p-polarized light behavior (critical for lasers/polarizers).
Environmental Durability: Adhesion, scratch resistance, temperature/humidity stability (MIL-SPEC or ISO standards).
5. Applications
Consumer Optics: Eyeglasses (AR/scratch-resistant), camera lenses (multi-layer AR), smartphone cameras.
Laser Systems: Resonator mirrors (HR), output couplers, beam splitters, polarizers.
Imaging & Vision: Microscopes, telescopes, night-vision devices, display filters.
Industrial & Scientific: Spectroscopy filters, fiber optics, solar panels (anti-reflection), aerospace optics.
